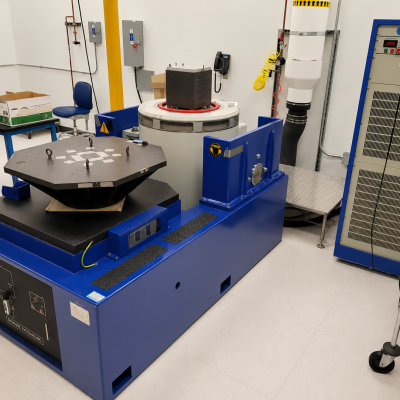

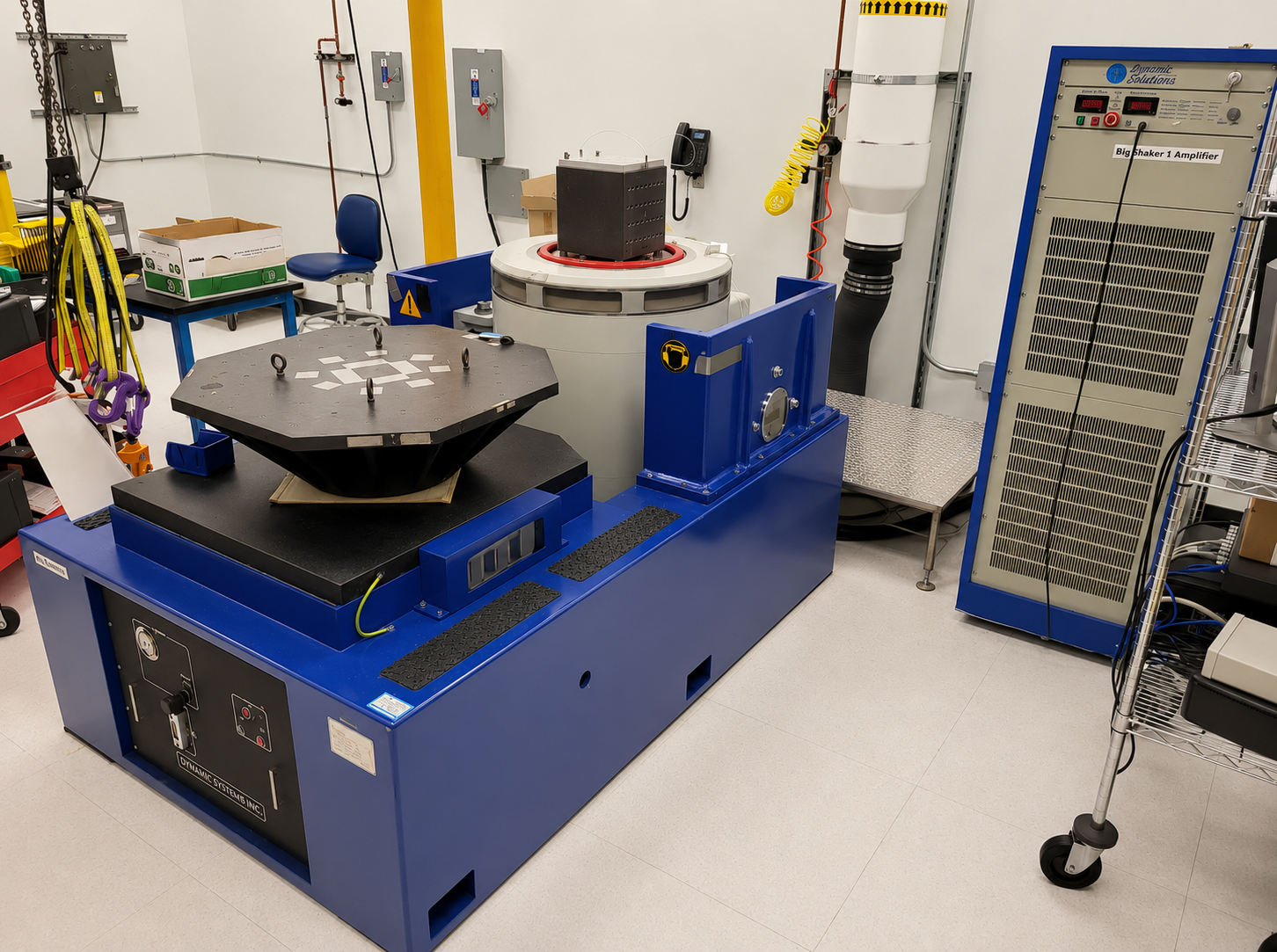

6.6KIP Dynamic Solutions DS6600/14 Vibration Test System with Slip Table

Dynamic Solutions Model DS-6600/14 Vibration System with SA-30 Power Amplifier

Condition: Excellent  (MFG: 11/28/2013)

SPECIFICATIONS:
Random Force Rating (lbf): 6,600 rms (3,000 kgf)
Sine Force Rating (lbf): 6,600 Peak (3,000 kgf)
Force Rating (Half Sine Shock): 13,200 (6,000 kgf)
Peak to Peak Displacement: 2" (51 mm)
Frequency Range (Hz): 5 to 2,800 Max
Max Velocity: 73.7 in/S (1.87 m/s)
Armature Diameter: 14.6" (370 mm)
Max. Armature Weight (lbs.): 66 (30 kg)
Vertical Load Support (lbs.):  1,100 (500 kg)
Total Approximate Weight (lbs.): 13,000
Overall Dimensions:
Shaker with Slip Table: 80"W x 52"L x43"H
Amplifier: 22"W x 32"D x 69"H
Cooling Blower: 26" x 22" x 30"H

EQUIPPED WITH:
  • DS6600/14 Air Cooled Vibrator Shaker

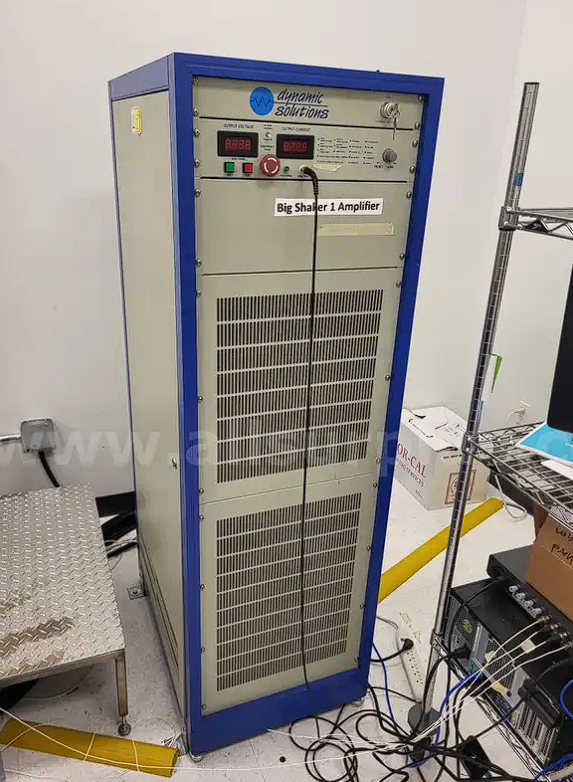

  • SA-30 30kVA Power Amplifier with Integral Field Power and Blower Power Supplies (480V, 60Hz, 3Ph 19.41 kVA)
  • Cooling Blower
  • 800mm x 800mm Horizontal Slip Table (Weight: 222 lbs)
  • 800mm x 800mm Vertical Head Expander (Weight: 128 lbs)
  • System Cables
FOB, Warren, MI
Cleaned, Serviced & Cycled
30 Day Satisfaction Guaranteed Return Privilege
90 Day Parts and Labor Warranty
*Actual Images

Click for quote | #13358-01

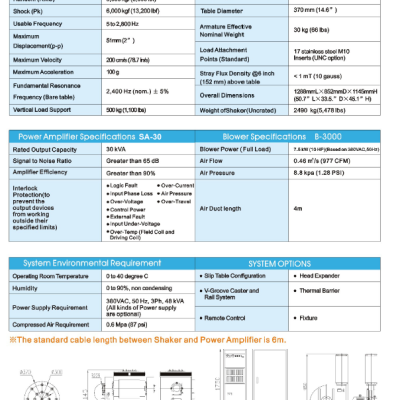

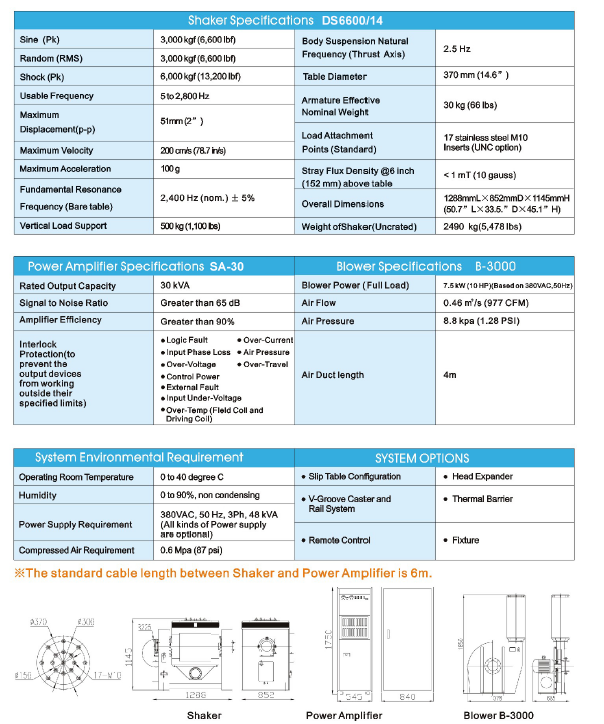

DOWNLOAD SPEC SHEET
